USAAS / USAAC / USAAF / USAF Mission Design Series (Pre-1962)
North American B-25J-20-NC "Mitchell" (World War II)
1909-1919 System (Aeronautical Division of the U.S. Army)
On August 1, 1907, the Aeronautical Division of the U.S. Army was created, although the first aircraft was not accepted until August 2, 1909. During the period from 1909 to 1919, there was no organized system of designation for Army aircraft; all aircraft were operated by the designations of individual manufacturers. An example of this is the 1911 Wright B "Flyer" shown below.
1911 Wright Modified B "Flyer"
1919-1924 System (United States Army Air Service)
In 1919, the Aeronautical Division became independent from the Army and was named the Army Air Service (USAAS). At this time a designation system was adopted utilizing 15 basic "mission symbols", along with other miscellaneous symbols, followed by a "design number". This system was officially adopted after the Army Re-organization Act of June 4, 1920, which made the USAAS a component of the Army. New mission symbols were added, modified mission and status symbols were introduced, and eventually, the original 15 became obsolete. The original 1919 designation included the Basic Mission Symbol, the Design Number, and the Series Letter, i.e. Curtiss PW-8A, Boeing PW-9, Huff-Daland LB-3, etc. As you can see, the 1919 system was rather complicated and cumbersome. A new system was then introduced in 1924. During this period, the name of the aircraft manufacturer was not included in the basic designation system. It was common practice to print the manufacturer's name along with the aircraft designation on the fuselage or the rudder of the aircraft.
The early designation systems included only three elements: (1) the"Basic Mission" symbol, (2) the "Design Number", and (3) a "Series Letter". A code or symbol for the manufacturer of the aircraft was not included. Instead the name of the manufacturer was spelled out on the aircraft. Examples of the early designation system is shown below.

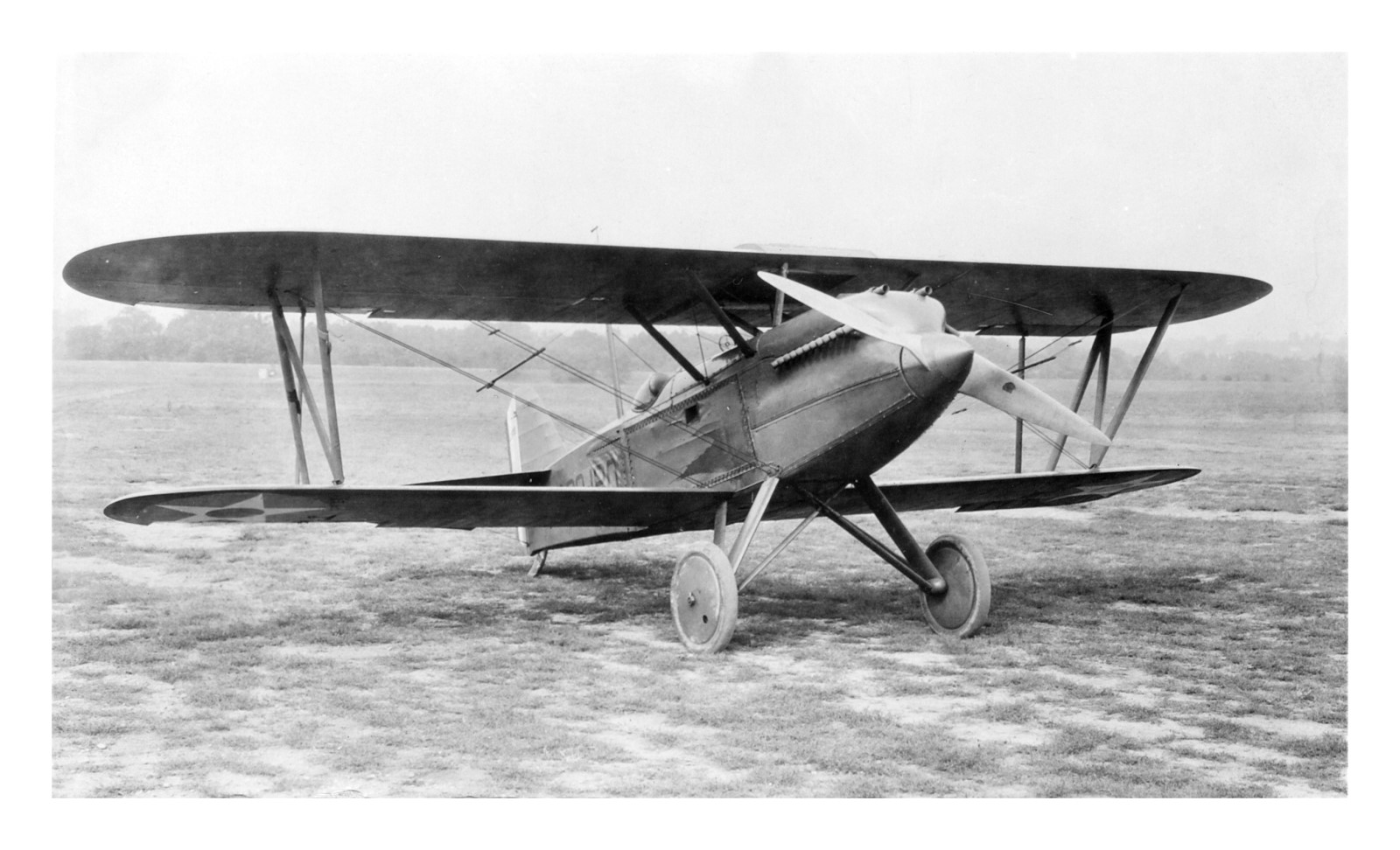

Curtiss PW-8A Aeroplane Photo Supply (APS) Photo No. 631
(Basic Mission) - (Design Number) (Series Letter)
Aircraft → | Curtiss PW-8A | Boeing PW-9 | Huff-Daland LN-3 |
Manufacturer → | Curtiss | Boeing | Huff-Daland |
Basic Mission → | PW | PW | LB |
Design Number → | -8 | -9 | -3 |
Series Letter → | A | | |
Basic Mission Symbols (Original 15) |
I | PW | Pursuit, Watercooled | 1921-1928 |
II | PN | Pursuit, Night | 1921 |
III | PA | Pursuit, Aircooled | 1922 |
IV | PG | Pursuit, Ground Attack | 1922 |
V | TP | Two-seat Pursuit | 1922 |
VI | GA | Ground Attack | 1920-1922 |
VII | IL | Infantry Liaison | 1919 |
VIII | NO | Night Observation | 1925 |
IX | AO | Artillery Observation | 1924 |
X | CO | Corps Observation | 1922-1924 |
XI | DB | Day Bombardment | 1920-1923 |
XII | NBS | Night Bombardment, Short Distance | 1921-1924 |
XIII | NBL | Night Bombardment, Long Distance | 1923 |
XIV | TA | Trainer, Aircooled | 1921-1924 |
XV | TW | Trainer, Watercooled | 1920-1923 |
Miscellaneous Symbols Adopted 1919 |
| A | Ambulance | 1919-1925 |
| G | Glider | |
| M | Messenger | 1919-1921 |
| PS | Alert Pursuit (Special) | 1923 |
| R | Racer | 1921-1923 |
| S | Seaplane | |
| T | Transport | 1919-1923 |
1924-1948 System (United States Army Air Corps and United States Army Air Force)
The USAAS became the U.S. Army Air Corps (USAAC) under the Air Corps Act of July 2, 1926 and the General Headquarters of the Air Force (GHQAF) was formed on March 1, 1935 to alleviate some of the responsibilities of the USAAC. On June 20, 1941, U.S. Army Air Forces (USAAF), with the USAAC and the GHQAF as its principal parts. However, GHQAF was discontinued on March 9, 1942. During World War II, many new mission symbols were added, redesignated, overlapped, and discontinued. Thus resuled in many ambiguities and confusions. However, on September 18, 1947, the USAAF became the United States Air Force, and was completely separated from the Army.

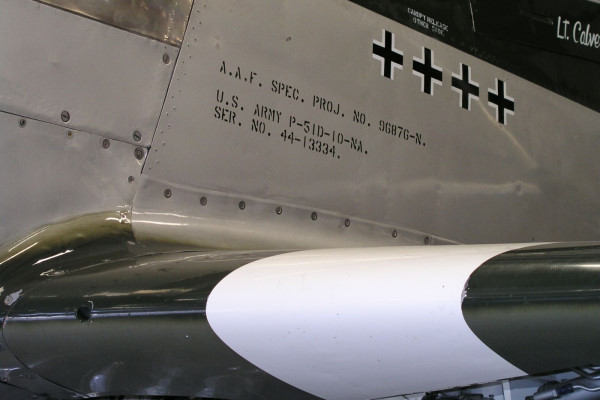

North American P-51D-10-NA Mustang
(Status Prefix1) (Modified Mission2) (Basic Mission3) - (Design Number4) (Series Letter5) - (Block Number6) - (Manufacturer Code7)
(1) Aircraft Status Prefix
The status prefix indicates a nonstandard use of an aerospace vehicle, such as test, experimental, prototype, etc. Appears to the immediate left of the modified mission symbol or basic mission symbol for aircraft. Example: North American XB-70A "Valkyrie". Status prefix "X" denotes a B-70 Experimental aircraft.

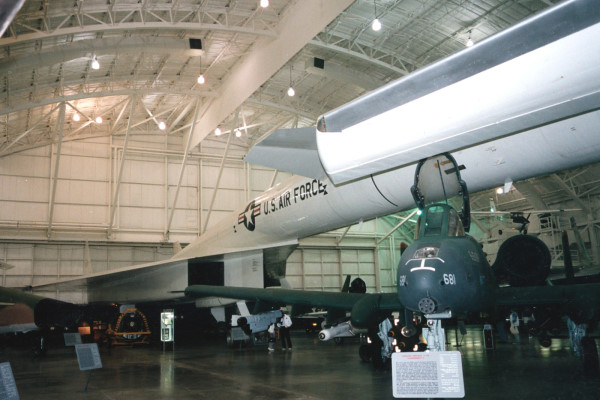

North American XB-70A "Valkyrie"
Aircraft Status Prefix "X" indicates "Experimental" Status
(1) Status Prefixes |
E | Exempt (Bailment to USAAF Contractor) | 1946-1947 |
G | Permanently Grounded | 1924 → |
R | Restricted | 1943-1947 |
X | Experimental | 1925- |
Y | Service Test | 1928 → |
Y1 | Aircraft purchased with "F-1" funds instead of USAAC appropriation | |
Z | Obsolete | 1928 |
(2) Aircraft Modified Mission (Optional)
The modified mission symbol identifies modifications to the basic mission of an aircraft. Appears to the immediate left of the basic mission symbol. Example: KC-97L, Modified Mission "K" identifies a C-97L modified for "tanker" role.

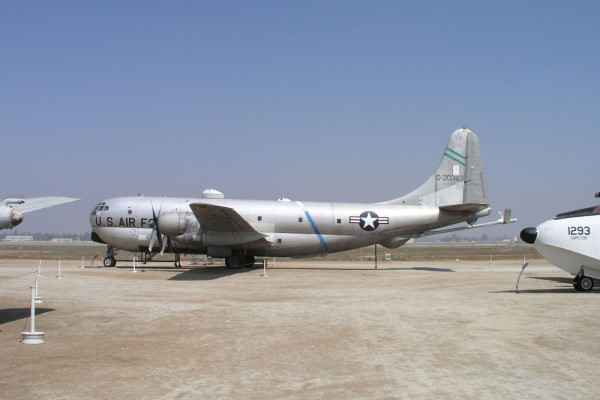

Boeing KC-97L "Stratofreighter"
Aircraft Modified Mission Symbol "K" indicates "Tanker" Configuration
(2) Modified Mission Symbols |
C | Transport | 1943-1962 |
D | Director (Drone Controller) | 1948-1962 |
F | Photographic | 1945-1947 |
G | Carrier | 1948 |
K | Ferret | 1944-1947 |
K | Tanker | 1949-1962 |
M | Medical | 1951-1952 |
P | Passenger Transport Only | 1948-1962 |
Q | Radio Controlled Drone | 1948-1962 |
R | Reconnaissance (Photographic) | 1948-1962 |
S | Search and Rescue | 1948-1962 |
T | Trainer | 1943-1962 |
U | Utility | 1943-1942 |
V | Staff (VIP Transport) | 1945-1962 |
W | Weather | 1948-1962 |
(3) Basic Mission
The basic mission identifies the primary function and capability of an aircraft and is the initial symbol assigned to that series. For standard vehicles (e.g., bombers, fighters), it appears to the immediate left of the "design number" separated by a dash. EXAMPLE: P-51D. Basic Mission "P" denotes pursuit.

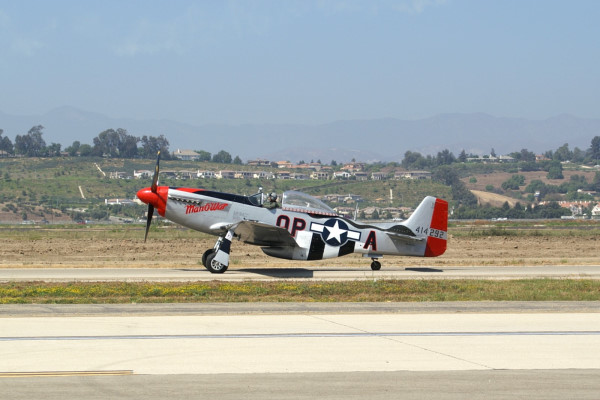

North American P-51D-25-NA "Mustang"
Basic Mission Symbol "P" indicates "Pursuit" Configuration
Basic Mission Symbols |
A | Aerial Target | 1940-1941 (became PQ - Aerial Target Man Carrying) |
A | Amphibian | 1948-1962 (formerly OA - Observation Amphibian) |
A | Attack | 1924-1927 (became B - Bomber) |
AG | Assault Glider | 1942-1944 |
AT | Advanced Trainer | 1925-1947 (became T - Trainer) |
B | Bomber | 1925-1962 |
BC | Basic Combat | 1936-1940 (became AT - Advanced Trainer) |
BG | Bomb Glider | 1942-1944 |
BLR | Bomb, Long Range | 1935-1936 (became B - Bomber) |
BQ | Bomb, Controllable | 1942-1945 |
BT | Basic Trainer | 1930-1947 (became T - Trainer) |
C | Cargo | 1925-1962 |
CG | Cargo Glider | 1941-1947 (became G - Glider) |
CQ | Target Control | 1942-1947 (became D - Director (Drone Controller) Modified Mission) |
F | Fighter | 1948-1962 (formerly P - Pursuit) |
F | Photographic | 1930-1947 (became R - Reconnaissance (Photographic) Modified Mission) |
FG | Fuel Glider | 1930-1947 |
FM | Fighter, Multiplace | 1936-1941 |
G | Glider | 1948-1962 |
G | Gyroplane | 1935-1939 (became O - Observation) |
G | Gyroplane | 1935-1939 (became R - Rotary Wing) |
GB | Glide Bomb | 1942-1947 |
GT | Glide Torpedo | 1942-1947 |
H | Helicopter | 1948-1962 (formerly R - Rotary Wing) |
HB | Heavy Bomber | 1925-1927 (became B - Bomber) |
JB | Jet-Propelled Bomb | 1943-1947) |
L | Liaison | 1942-1962 (formerly O - Observation) |
LB | Light Bomber | 1924-1932 (became B - Bomber) |
O | Observation | 1924-1942 (became L - Liaison) |
OA | Observation Amphibian | 1925-1947 (became A - Amphibian) |
OQ | Aerial Target (Model Airplane) | 1942-1947 (became Q - Aerial Target) |
P | Pursuit | 1925-1947 (became F - Fighter) |
PB | Pursuit, Biplace | 1935-1941 |
PG | Powered Glider | 1943-1947 |
PQ | Aerial Target (Man Carrying) | 1942-1947 (formerly A - Aerial Target) |
PQ | Aerial Target (Man Carrying) | 1942-1947 (became Q - Aerial Target) |
PT | Primary Trainer | 1925-1947 (became T - Trainer) |
Q | Aerial Target | 1948-1962 (formerly OQ - Aerial Target (Model Airplane)) |
Q | Aerial Target | 1948-1962 (formerly OQ - Aerial Target (Man Carrying)) |
R | Reconnaissance | 1948-1962 (formerly F - Photographic) |
R | Rotary Wing | 1941-1947 (became H - Helicopter) |
S | Supersonic / Special Test | 1946-1947 (became X - Special Research) |
T | Trainer | 1948-1962 (formerly AT - Advanced Trainer) |
T | Trainer | 1948-1962 (formerly BT - Basic Trainer) |
T | Trainer | 1948-1962 (formerly PT - Primary Trainer) |
TG | Training Glider | 1941-1947 |
U | Utility | 1952-1962 |
V | VTOL or STOL | 1954-1962 |
X | Special Research | 1941-1947 (formerly S - Supersonic / Special Test) |
(4) Design Number
The design number identifies major design changes within the same basic mission. Design numbers run consecutively from "1" to "999" and appears to the immediate right of the basic mission, separated by a dash. EXAMPLE: P-51. Design Number "51" is the 51st MDS requested for an aircraft with a pursuit mission under the system.

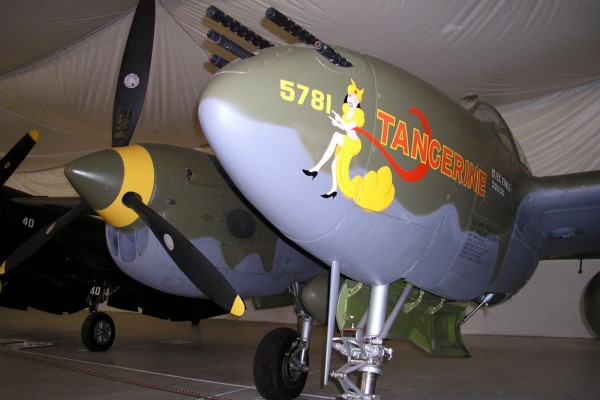

Lockheed P-38L-5-LO "Lightning" Design Number "38" indicates the 38th "Pursuit" Configuration
(5) Series Number
The "Series Number" identifies the production model of a particular design number and later models representing major modifications that significantly alter the aircraft's components or change of logistics support of the vehicle. Consecutive series symbols, starting with "A", appear to the immediate right of the design number. To avoid confusion, the letters "I" and "O" are not used for this symbol. EXAMPLE: P-47D. Series "D" indicates the forth production model of the P-47. At the end of this series indicator "Z", the next sequence will be to advance the design number to the next consecutive unused number and begin with symbol series "A".

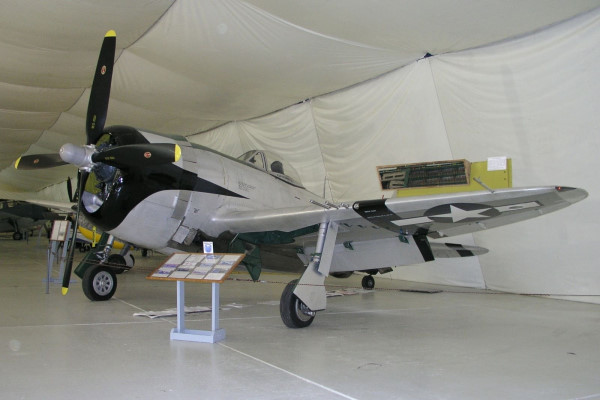

Republic P-47D-30-RA "Thunderbolt" Series Number "D" indicates the 4th modification to the basic P-47 configuration
(6) Block Number
Block numbers were introduced by the U.S. Army Air Force in World War II to distinguish between minor sub-variants of a specific aircraft variant. They were originally assigned in steps of five, i.e. 1, 5, 10, 15, ..., with the gaps being intended to be used for modifications after production. This was also the rule for block numbers as defined in the first issue of the current designation system in 1962.

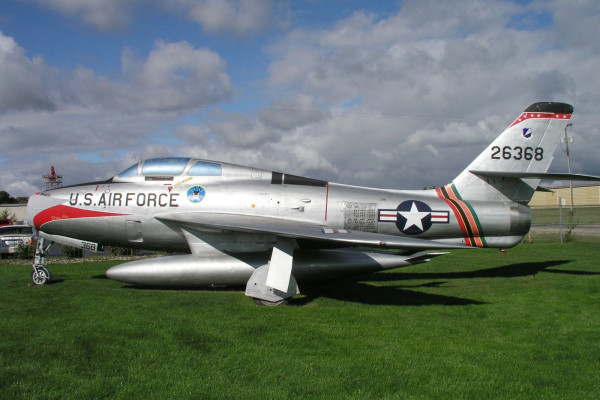

Republic F-84F-30-RE "Thunderstreak" Block Number "30" represents a specific configuration of the F-84F build series
(7) Manufacturer Code Letters
The following two-letter codes were used to identify the manufacturing plant of an aircraft. Like the block numbers, these code letters were introduced by the USAAF during World War II. However, manufacturers' codes were officially dropped from the regulations in 1976.

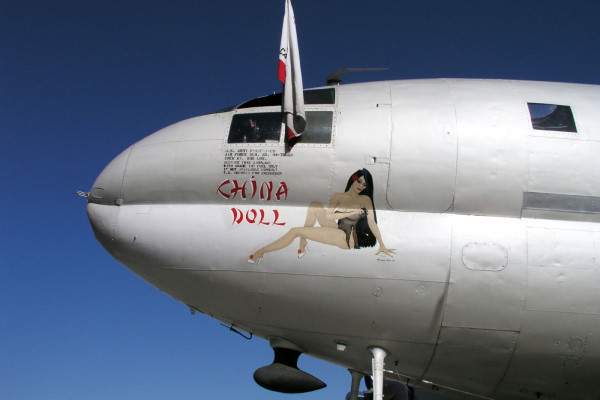

Curtiss C-46F-1-CU "Commando" Manufacturer Code Letters "CU" indicated that the aircraft was built by "Curtiss, Buffalo, NY"
(7) Aircraft Manufacturer Code Letters (Pre-1962) |
AD | Aero Design & Engineering, Bethany, OK |
AE | Aeronca Aeronautical Corporation, Middletown, OH |
AG | Air Glider, Inc., Akron, OH |
AH | American Helicopter Division, Fairchild Aircraft & Engineering Corp., Manhattan Beach, CA |
BA | Bell Aircraft Corp., Atlanta, GA |
BB | Babcock Aircraft, Deland, FL |
BE | Bell Aircraft Corp., Buffalo, NY |
BF | Bell Aircraft Corp., Fort Worth, TX |
BH | Beech Aircraft Corporation, Wichita, KS |
BL | Bellanca Aircraft, New Castle, DL |
BN | Boeing Airplane Co., Renton, WA |
BO | Boeing Aircraft Company, Seattle, WA |
BR | Briegleb Sailplane, Beverely Hills, CA |
BS | Bowlus Sailplane, San Francisco, CA |
BU | Budd … Edward G. Manufacturing, Philadelphia, PA |
BW | Boeing Airplane Co., Wichita, KS |
CA | Chase Aircraft, West Trenton, NJ |
Can | Canadair, Ltd., Division, General Dynamics Corp., Montreal, Canada |
CC | Canadian Commercial Corp., Toronto, Canada |
CE | Cessna Aircraft Company, Inc., Wichita, KS |
CF | Convair Division, General Dynamics Corp., Fort Worth, TX |
CH | Christopher Aircraft, St. Louis, MO |
CK | Curtiss-Wright, Louisville, KY |
CL | Culver Aircraft Corporation, Wichita, KS |
CM | Commonwealth Aircraft, Inc., Kansas City, MO |
CN | Chase Aircraft, Willow Run, MI |
CO | Convair Division, General Dynamics, San Diego, CA |
CR | Cornelius Aircraft, Dayton, OH |
CS | Curtiss-Wright Corp., St. Louis, MO |
CU | Curtiss, Buffalo, NY |
CU | Curtiss, Columbus, OH |
DC | Douglas Aircraft Company, Chicago, IL |
DE | Douglas Aircraft Company, El Segundo, CA |
DH | De Havilland Aircraft of Canada, Toronto, Canada |
DK | Douglas Aircraft, Oklahoma City, OK |
DL | Douglas Aircraft, Long Beach, CA |
DM | Doman Helicopters, Danbury, CN |
DO | Douglas Aircraft Company, Inc., Santa Monica, CA |
DT | Douglas Aircraft Co., Tulsa, OK |
FA | Fairchild … The Fairchild Aircraft Division of the Fairchild Engine and Airplane Corporation, Hagerstown, MD |
FB | Fairchild … The Fairchild Aircraft Division of the Fairchild Engine and Airplane Corporation, Hagerstown, MD |
FE | Fleet Aviation Ltd., Fort Erie, Ontartio, Canada |
FL | Fleetwings, Inc., Bristol, PA |
FO | Ford Motor Company, Willow Run, MI |
FR | Frankfort Sailplane Company, Joilet, IL |
FT | Fletcher Aviation, Pasadena, CA |
GA | G. & A. Aircraft, Willow Grove, PA |
GC | General Motors (Fisher), Cleveland, OH |
GE | General Aircraft, Astoria, Long Island, NY |
GF | Globe Aircraft Corporation, Fort Worth, TX |
GK | General Motors, Kansas City, KS |
GM | General Motors (Fisher), Detroit, MI |
GN | Gibson Rifrigerator, Greenville, MI |
GR | Grumman Aircraft Corporation, Bethpage, Long Island, NY |
HE | Hello Aircraft Corp., Norwood, MA |
HI | Higgins Aircraft, Inc., New Orleams, LA |
HO | Howard Aircraft Corporation, Chicago, IL |
HU | Hughes Tool Company, Tucson, AZ |
IN | Interstate Aircraft & Engineering Corporation, El Segundo, CA |
KA | Kaman Aircraft Corporation, Bloomfield, CN |
KE | Kellett Aircraft Corp., Camden, NJ |
KM | Kaiser Mfg. Corp., Willow Run, MI |
LK | Laister-Kauffman, St. Louis, MO |
LM | Lockheed, Georgia Division, Marietta, GA |
LO | Lockheed Aircraft Corp., Burbank, CA |
MA | Martin … The Glenn L. Martin Co., Baltimore, MD |
MC | McDonnell Aircraft Corp., St. Louis, MO |
MH | McCulloch Motors Corp., Los Angeles, CA |
MM | McDonnell Aircraft Corp., Memphis, TN |
MO | Martin … The Glenn L. Martin Co., Omaha, NE |
NA | North American Aviation, Inglewood, CA |
NC | North American Aviation, Kansas City, KS |
ND | Noorduyn Aviation, Ltd., Montreal, Canada |
NF | North American Aviation, Fresno, CA |
NH | North American Aviation, Columbus, OH |
NK | Nash-Kelvinator Corp., Detroit, MI |
NO | Northrop Aircraft, Hawthorne, CA |
NT | North American Aviation, Dallas, TX |
PH | Piasecki Helicopter Corporation, Morton, PA |
PI | Piper Aircraft, Lockhaven, PA |
PL | Platt-LePage, Eddystone, PA |
PR | Pratt, Read & Company, Deep River, CN |
Q | Chas. Ward Hall. Inc |
RA | Republic Aviation, Evansville, IN |
RD | Read-York, Inc., Kenosha, WI |
RE | Republic Aviation, Farmingdale, Long Island, NY |
RI | Ridgefield Mfg. Co., Ridgeville, NJ |
RO | Robertson Aircraft, St. Louis, MO |
RP | Radioplane Division, Northrop Corporation |
RY | Ryan Aeronautical Company, San Diego, CA |
SC | Southern Aircraft Corporation, Ontario, CA |
SE | Seibel Helicopter, Wichita, KS |
SI | Sikorsky Aircraft Division, United Aircraft Corporation, Stratford, CN |
SL | St. Louis Aircraft, St. Louis, MO |
SP | Spartan Aircraft Company, Tulsa, OK |
Str | Stroukoff Aircraft Corporation, West Trenton, NJ |
SW | Schweizer Aircraft, Elmira, NY |
TA | Taylorcraft Aviation Corporation, Alliance, OH |
TG | Texas Engineering & Manufacturing Company, Greenville, TX |
TI | Timm Aircraft Corporation, Van Nuys, CA |
TP | Temco Aircraft Corporation, Grand Prarie, TX |
UH | Hiller Helicopters, Inc., Palo Alto, CA |
UN | Universal Molded Products, Bristol, VA |
VE | Vega Aircraft Corporation, Burbank, CA |
VI | Canadian-Vickers, Ltd., Montreal, Canada |
VN | Vultee Aircraft, Nashville, TN |
VU | Vultee Aircraft, Downey, CA |
VW | Vultee, Wayne, MI |
WA | Ward Furniture Company, Fort Smith, AR |
WI | Wichita Engineering, Wichita Falls, TX |
WO | Waco Aircraft Company, Troy, OH |
1948-1962 System (United States Air Force)
When the USAF was created, a "division of duties" was established that prohibits the Army from operating any fixed wing, jet-powered attack aircraft, or tactical reconnaissance aircraft. The 1924-1948 system remained in use until a new designation system was also modified and adopted by all branches of service on September 18, 1962.
1962 United States Tri-Service Aircraft Designation System
On the 18 September 1962, the United States Department of Defense introduced a unified designation system for the aircraft of the United States armed forces. Prior to this date, each service used their own nomenclature system. The 1962 system was based on the one used by the U.S. Air Force between 1948 and 1962. Since it was introduced the 1962 system has been modified and updated; in 1997 a revised form of the system was released. Almost all aircraft operated by the USAF, United States Navy (USN), United States Coast Guard (USCG) and United States Marine Corps (USMC)) and the United States Army are assigned a designation under this system. Experimental aircraft operated by manufacturers or National Aeronautics and Space Administration (NASA) are also often assigned numbers in the X-series.
| Home
| Archive Subscriber Support
| Guestbook
| Contact Us
| Legal Notice
| Aviation Links
|
Copyright © 2010 Skytamer Images, Whittier, California ALL RIGHTS RESERVED
|
