Aerojet Ordnance CBU-89A/B The Gator Weapon System
United States, Combined Effects Munitions (CEM)

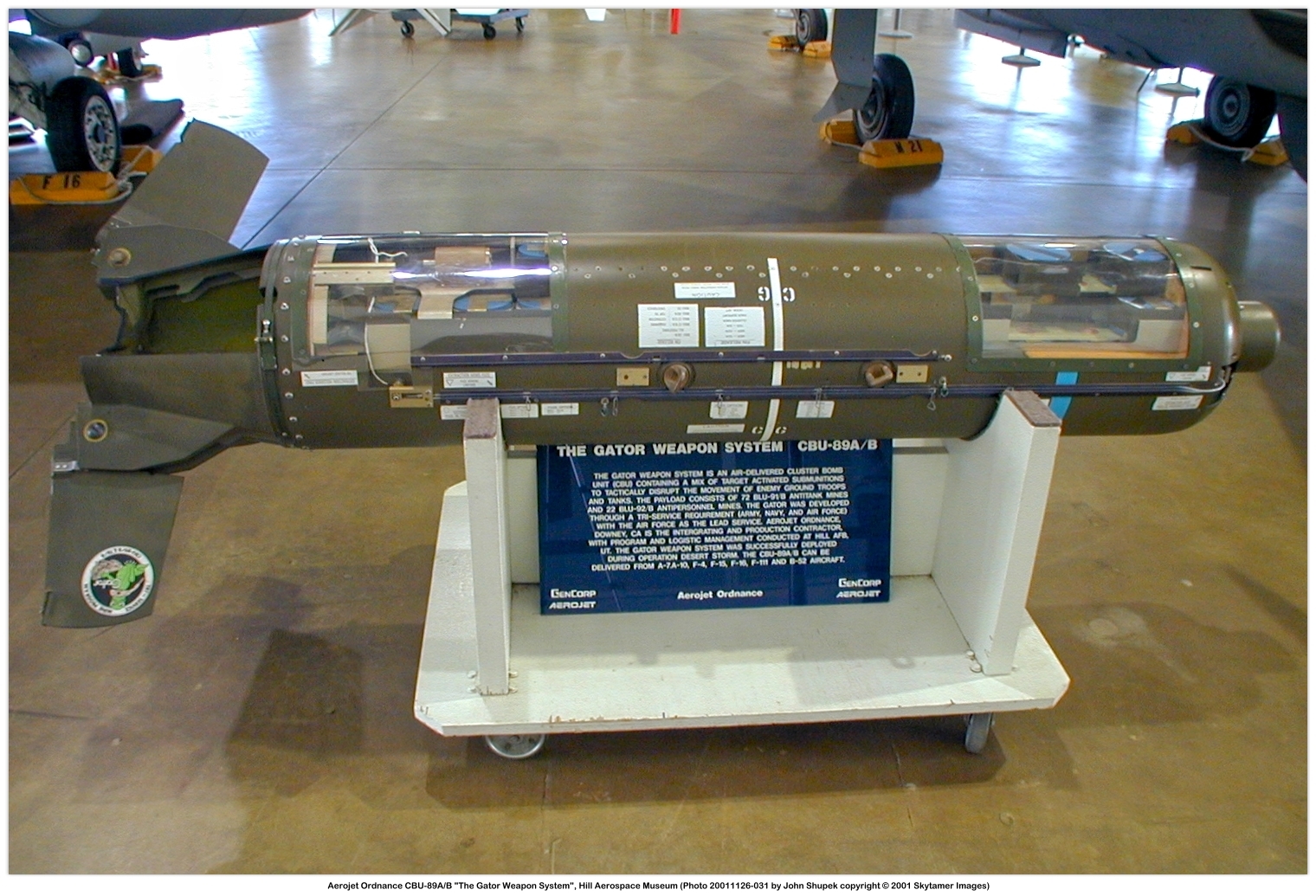

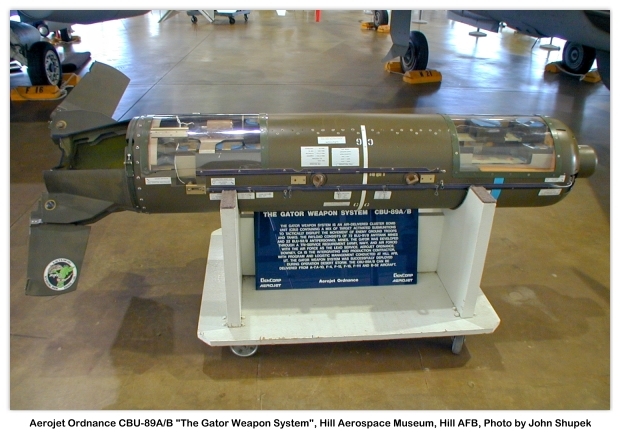

 2001 Skytamer Images.jpg "Aerojet Ordnance CBU-89A/B The Gator Weapons System at Hill Aerospace Museum, Photo 20011126-031 by John Shupek copyright © 2001 Skytamer Images <sup>1</sup>")
Overview 2
Aerojet CBU-89/B
Aerojet CBU-78/B
The GATOR mine system is a US system of air-dropped anti-tank and anti-personnel mines developed in the 1980s to be compatible with existing cluster dispensers. It is used with two dispenser systems: (1) The US Navy 230 kg (500 lb) CBU-78/B and (2) the US Air Force 450 kg (1,000 lb) CBU-89/B. Additionally the mines are used with the land-based and helicopter-based Volcano mine system.
In use the bombs are dropped from aircraft flying at speeds between 370 and 1,300 km/h (200 and 700 kn), and at altitudes of between 100 and 1,200 meters. An FMU-140/B fuse controls the opening of the dispenser at one of 10 predetermined altitudes between 90 m and 900 m using a doppler ranging radar or alternatively a 1.2 second time fuse. Mine arming begins when the dispenser opens with the activation of the mines’ vanadium pentoxide batteries. The circular mines have a rectangular plastic aeroballistic adaptor. Once the mines reach the ground they arm in between 1.2 and 10 seconds.
The mines self-destruct after a preset time which can be set to 4 hours, 15 hours or 15 days. Any that do not will become disabled after 40 days when the batteries discharge fully. The self-destruct time is set just prior to aircraft takeoff using a simple selector switch on the dispenser. During the Gulf War the dud rate for this system was significant, in one of seven Kuwati battlefield sectors there were 205 BLU-91 and 841 BLU-92 duds. Given that 89,235 BLU-91 and 27,535 BLU-92 mines were used during the Gulf War, this represents a dud rate of somewhere between 0.5 to 2% for the BLU-91 and to 6 to 21% for the BLU-92. Additionally, CMS mine field clearing personnel reported dud GATOR mines detonating with no apparent triggering event, and speculated that the extreme heat of the Kuwait desert may have triggered detonation.
The GATOR system provides a means to emplace minefields on the ground rapidly using high-speed tactical aircraft. A typical GATOR minefield is 650 m long and 200 m wide and contains 432 anti-tank mines and 132 anti-personnel mines. The minefields are used for area denial, diversion of moving ground forces, or to immobilize targets to supplement other direct attack weapons. In the 1991 Gulf War the US Air Force employed 1,105 CBU-89s. One reported task was to hamper the movements of Iraqi Scud missile launchers.
Air Force CBU-89/B
The Air Force CBU-89/B is a 450-kilogram (1,000 lb) cluster munition containing 72 antitank and 22 antipersonnel mines, consists of an SUU-64 Tactical Munitions Dispenser with an optional FZU-39 proximity sensor. The TMD is the same general configuration used for the CBU-87/B Combined Effects Munition. This commonality allows for high-rate, low-cost production of the dispenser. When the CBU-89 is used in conjunction with the Wind Corrected Munitions Dispenser guidance tail kit, it become a precision-guided munition designated as CBU-104.
Navy CBU-78/B
The Navy CBU-78/B is a 230-kilogram (500 lb) cluster munition containing 45 antitank and 15 antipersonnel mines. It uses the same dispenser as the Mk.7 Rockeye.
BLU-91/B Anti-Tank Mine
The BLU-91/B AT mine is a low flat cylinder with a rectangular aeroballistic shell. A magnetic sensor in the mine detects targets, when it detects a suitable target and the target reaches the most vulnerable approach point it detonates the mine. The mine is also triggered if the mine is moved, or if the battery reaches a certain low voltage point.
Once the fuse is triggered, a small clearing charge is fired that clears any debris that may be on top of the mine. A second larger charge is triggered 30 ms later, creating an Explosively Formed Penetrator capable of penetrating 70 mm of armor, using the Misznay-Schardin effect. The charge is capable of penetrating the most armored vehicles from below.
The mine weighs 1.95 kilograms and is 127 millimeters in diameter, with 580 grams of an RDX/Estane explosive mix.
BLU-92/B Anti-Personnel Mine
After the mine reaches the ground, and the arming delay has passed, a squib is fired launching eight trip wires from the mine. Tension on any of the wires triggers the mine electronically; it also has an anti-handling ball and can switch. The mine has an effective fragmentation radius of about 20 meters.
The mine is approximately 127 millimeters in diameter and weighs 1.68 kilograms. The mine’s main charge consists of 420 grams of Composition B-4. It is found unexploded in Iraq and Kuwait after US military usage in the Gulf War.
